Turbo-Hydramatic or Turbo Hydra-Matic is the registered tradename for a family of automatic transmissions developed and produced by General Motors. These transmissions mate a three-element turbinetorque converter to a Simpsonplanetary geartrain, providing three forward speeds plus reverse.

The Turbo-Hydramatic or Turbo Hydra-Matic (THM) series was developed to replace both the original Hydra-Matic models and the BuickDynaflow. In its original incarnation as the Turbo-Hydramatic 400, it was first used in the 1964 model year in Cadillacs. The Buick version, which followed shortly thereafter, was known as the Super-Turbine 400. By 1973, THM units had replaced all of GM's other automatic transmissions including Chevrolet's Powerglide, Buick's Super Turbine 300, and Oldsmobile's Jetaway. Starting in the early 1980s, the Turbo-Hydramatic was gradually supplanted by four-speed automatics, some of which continue to use the 'Hydramatic' trade name.

Although the Turbo Hydra-Matic name alludes to the original Hydra-Matic developed by General Motors' Cadillac division in the late 1930s, the two transmissions were not mechanically related.

The Turbo-Hydramatic 425 was an automatic transmission developed and produced by General Motors. It was a 3-speed longitudinal automatic transmission. The Turbo-Hydramatic (THM) series of transmissions were developed to replace both the original Hydra-Matic models and the Buick Dynaflow. The THM425 is a derivative of the THM400. Turbo-Hydramatic 425 (TH425 or THM 425, later 325) was an automatic transmission developed and produced by General Motors. The THM425 was a derivative of the THM400; most parts directly interchange and some others will interchange with minor modifications. The Turbo-Hydramatic 425 was an automatic transmission developed and produced by General Motors. It was a 3-speed longitudinal automatic transmission. The Turbo-Hydramatic (THM) series of transmissions were developed to replace both the original Hydra-Matic models and the Buick Dynaflow. The THM425 is a derivative of the THM400.

Super Turbine 400 / THM400 / THM375 / 3L80 / 3L80HD[edit]

The THM400 can be visually identified by an oil pan number four shown at General Motors Transmission Pans. First introduced for the 1964 model year under the name 'Turbo Hydra-Matic' in Cadillacs and 'Super Turbine' in Buicks. The following year, application expanded to Oldsmobile and Pontiac and to some full-sized Chevrolets. Many of the Buick, Cadillac, and Oldsmobile THM400s produced between 1964 and 1967 were equipped with a 'Switch-Pitch' torque converter with a variable-pitch stator, which is sought after by collectors and drag racers. These can be identified outside the vehicle (with the torque converter removed) by a narrow front pump spline. Externally the switch pitch version has two electrical connections, where the non-switch pitch THM400 has only one. GM used a Switch Pitch torque converter in the Buick twin turbine Dynaflow transmission between 1955–1963 and the Super Turbine 300 two speed transmissions used by Oldsmobile, Pontiac (Pontiac's ST300 didn't have a switch pitch), and Buick divisions between 1964 and 1967. This transmission (among other THMs) is identified by the 'Park R N D L2 L1' selector quadrant. The switch pitch is not the only THM400 that utilizes an external 2 prong connector. Other units to include the 2 prong connectors had an internal pressure switch that was used to control spark timing retard. All THM400 units had a 32 spline output shaft with the exception of the THM375 that used a 27 spline output.

A variant of the THM400 known as a THM375 is a THM400 with a mid length 27 spline output shaft that mates to the smaller THM350 27 spline drive shaft yoke. It can be identified by '375-THM' cast into the tailhousing. Internally the clutch packs originally had fewer friction plates. THM375s were found in some 1971-76 Buick Lesabres and Oldsmobile Delta 88s with the 5.7 liter V-8. Somewhere in the Mid-80's Chevrolet C10 Pickups could also come equipped with a THM375. It is a THM400 Chevrolet bolt pattern case that has a longer 27 spline output shaft and matching extension housing with 'TH375' cast into the housing. Some 'Heavy Duty' THM350s were also designated THM375-B. Another variant is the 3L80HD, often referred to as a Turbo 475. The 3L80HD has a straight-cut planetary gear set. There is no externally visible way to determine whether the transmission contains the straight-cut planetary gear set. The THM425 front wheel drive transmission shares almost all its internal parts with the THM400. Checker Motors Corporation Motor Company used the Chevrolet version of the THM400 for its 'A' series taxi and Marathon models until the end of production in 1982.

By 1980, the relatively heavy THM400 was being phased out of usage in passenger cars in response to demand for improved fuel economy. The THM 400 was utilized in the C- and K-series (full-size) Chevrolet/GMC pickups and G-series (full-size) vans until 1990 when GM switched over to the 4L80E. Today, the United States ArmyHMMWV is the only vehicle using the THM400. The civilian Hummer H1 originally had the 3L80s, but the current model has had a 4L80E since the mid-1990s.

Through the end of the '70s substantially more CBOP (Cadillac/Buick/Oldsmobile/Pontiac) bellhousing THM400s were produced than any other THM400. Chevrolet bellhousing THM400s, while not rare, can be hard to find and are, as a result, usually more expensive to buy (they were commonly found in 3/4 ton (8500 GVW and above) Chevrolet/GMC trucks and vans (includes the P-series box vans and 1983-86 CUCVs) when RPO M40 was checked off the option list - especially when coupled to a 454 - usually in HD applications including the C40-C60 medium duty trucks where a bolt-on output shaft is used in place of a slip yoke) - when used with passenger cars it was usually coupled to a Mark IV engine or some high performance small blocks (e.g. the 1970 LT-1). The THM400 was never produced with a multicase bell housing.

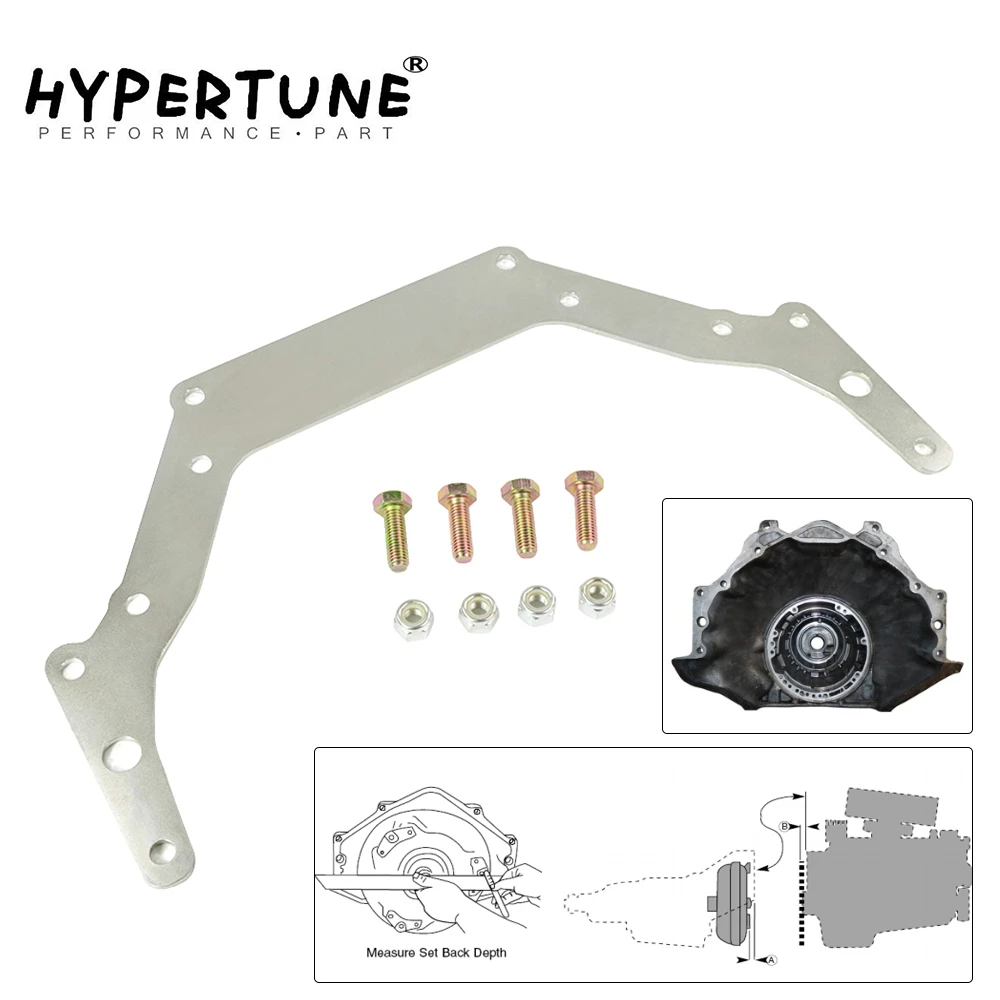

Other auto manufacturers have used the THM400 and its 4L80E successor, including Ferrari (in the 400/412); Jaguar/Daimler (in pre-1994 XJ12 and XJ-S coupes and their Daimler stable mates); Rolls-Royce (in 1965–1980 Silver Shadow and 1980-1992 Silver Spirit series cars, along with their Bentley stable mates); the Nissan Prince Royal; AM General; and Jeep (usually found in the FSJ pickups and SUVs). Early Jeep THM400s used an adapter between the engine and transmission bell housing while later models had an AMC specific housing - which bolted to its inline six and V8. Though identical except for the bell housing pattern used through the '60s and ending in 1979 the THM400 was mated to the Dana model 18,20 and was the only transmission used with the Borg-Warner 1305/1339 all-wheel-drive transfer case used only in Jeeps (AMC/Jeep phased in the used of the Chrysler Torqueflite 727 after 1979 until the FSJ platform was phased out), It has been known to adapt a THM400 to other engines using adapters.

THM400 transmissions are very popular in automotive competition due to their great strength. Much of this strength comes from the use of a cast iron center support to suspend the transmission's concentric shafts that join the clutch assemblies to the gear train. The center support, which is splined to the interior of the transmission's case, also provides a robust reaction point for first gear (the gear train's reaction carrier is restrained from counter-rotating the engine in first gear by a roller clutch whose inner race is part of the center support). Since the first gear reactive force is evenly distributed around the periphery of the case, the types of mechanical (and some times violent) failures that have plagued other competition transmissions^[vague] are rare.

The THM400 was the first three-speed, Simpson-geared automatic to use overrunning clutches for both first and second gear reaction, a feature that eliminated the need to coordinate the simultaneous release of a band and application of a clutch to make the 2-3 gear change. Owing to this feature, as well as the use of a large, multi-plate clutch to provide second gear reaction, the THM400 is able to withstand very high input torque and an enormous number of shifting cycles, as would be encountered in frequent stop-and-go driving. As a result, it has met with considerable success in commercial vehicle applications.

For 1987, GM changed the nomenclature of their Turbo Hydramatic transmissions — the THM400 was renamed '3L80' (three forward speeds, longitudinal positioning, and an arbitrary strength rating of 80, the second highest such rating assigned). The 3L80HD was introduced in 1987 as the HD unit used in passenger trucks. In 1991, a four-speed overdrive version, the 4L80-E, replaced the THM400 in Chevrolet/GMC pickups, vans, SUVs, and commercial vehicles. The 4L80E (and its successor 4L85E) was the first Hydramatic to incorporate electronic controls — almost all of the THM400/3L80/3L80HD's components are interchangeable.

Transmission fluid cooler line connections are found on the right-hand side of the THM400. The lower connection is the cooler feed, and the upper connection is the return.^[1] The case is tapped for either self-sealing 1/4'NPT fittings, or 1/2'UNF fittings with a washer seal. 5/16' or 3/8' rigid coolant lines are generally connected via appropriate double-flared adapters.

Four-wheel drive truck applications used 3 various shorter output shafts that coupled with a female transfer case input shaft. Early transfer cases mated directly to the THM400 with a cast-iron adapter, usually a vertical oval shape. Later models used a circular style iron adapter which is generally considered the stronger of the two. The shortest was used with the NP203 transfer case.

THM350[edit]

The Turbo Hydra-matic 350 was first used in 1969 model cars. It was developed jointly by Buick and Chevrolet to replace the two-speed Super Turbine 300 and aluminum-case Powerglide transmissions. So, although it carries the Turbo Hydra-matic name, the Hydra-matic Division of General Motors had little, if anything, to do with its design. The 350 and its 250, 250C, 350C and 375B derivatives have been manufactured by Buick in its Flint, Michigan plant, and by Chevrolet in Toledo and Parma, Ohio and Windsor, Ontario.

The THM350 was also regarded as a 'three speed Powerglide' and during its development, was generally called this. Although it uses the same torque converter as the THM400 (without variable pitch stator) it has a familial resemblance to the 1962-73 aluminum Powerglide from Chevrolet^{[according to whom?]} and was largely derived from the Chevrolet design. An important difference in the THM350 compared to the THM400 is that there is no fixed center support midway through the geartrain; this difference in layout would have permitted the THM350 to be adapted to the Corvair where the drive and driven ends are the same, but this feature was not exploited. Air-cooled versions (with a baffle on the torque converter and air intakes cast into the bellhousing) of the THM350 appeared mid-1972 in the Chevrolet Vega and Nova 6.

One THM350 weak point was excessive end-play between the pump and center support and resulting wobble of the direct clutch drum due to both the end play and use of a relatively narrow bushing in the drum. This weak point can be addressed by using an extra thrust washer between the planetary gear and direct clutch to remove the end play and using a wider aftermarket bushing in the direct clutch drum.^{[according to whom?]} Another weak point is the relatively thin center support and the lightweight matching splines in the case. This weakness can be addressed by using an inexpensive aftermarket case saver kit.

Four-wheel drive truck applications for the THM350 used an iron adapter that mated it to the transfer case directly, similar to the THM400. The THM350 adapter was cast iron and used a sliding sleeve to couple the transmission output shaft to the transfer case input shaft with a steel coupler sleeve that was splined to accept both shafts and couple them together. An internal snap ring inside the coupler sleeve controlled the sleeve's position on the shafts, with circular seals in the adapter sealing the transmission from the transfer case.

For the 1981 model year, a lock-up torque converter was introduced which coincided with the new EMC control of most GM cars; this version is the THM350-C, which was phased out in 1984 in GM passenger cars for the 700R4. Chevrolet/GMC trucks and vans used the THM350-C until 1986. The lock-up torque converter was unpopular with transmission builders B&M Racing once marketed a conversion kit for THM350-Cs during the early 1980s until the advent of high stall lock-up torque converters when its overdrive counterpart (THM700R4/4L60) were modified. The standard TH350 is still very popular in drag racing.

THM250[edit]

The THM250 is a derivative of the THM350 and was introduced for 1974 in Chevrolets as a Powerglide replacement. Internally, the THM250 is a THM350 without the intermediate clutch pack and with a band adjuster similar to the Powerglide. The THM250 was usually coupled to smaller displacement engines - the largest a third generation Chevrolet inline six found in the Nova and Camaro (1974 and 75 model year only). During the 1976 model year the THM250 was phased out of production, replaced with the lighter duty THM200. It was later reintroduced in 1979 as the THM250-C in the wake of the failure-prone THM200/200C - the later 250C was further lightened with the use of a sun gear shell used with the THM350 but with 3 holes to reduce rotating mass and the low/reverse piston with 8 cutouts.

THM200[edit]

After the 1973 OPEC oil embargo, GM developed a lighter-duty version of the THM350 with lightened materials — primarily alloys in place of ferrous materials (e.g. clutch drums and oil pump) — the Turbo-Hydramatic 200. The THM-200 was first used in 1976 models including GM's T-cars (which includes the rebadged Isuzu Gemini sold through Buick dealers as the Buick/Opel by Isuzu), X-cars, and some Isuzu automobiles (Chevrolet LUV and Isuzu P'up). However, this transmission was notorious for its failure rate^{[citation needed]} when used behind too large an engine - the largest being the Oldsmobile 5.7 L diesel. No multicase bellhousings were used - bellhousing patterns included Chevrolet V8, Buick-Oldsmobile-Pontiac, Vega 4, GM 60 degree pattern (includes the Tech IV), and Isuzu G engine.

It was GM's first transmission which used a throttle valve cable (similar in design to the Chrysler Torqueflite part throttle kickdown linkage) controlling the shift points and part throttle kickdown. This setup was later incorporated into the THM700R4.

Starting with the 1979 model year, vehicles which had the THM-200/200C as standard equipment were optioned with the THM250-C, which is a THM-350 without the intermediate clutch pack along with an adjustable band similar to the Chevrolet Powerglide. Also in the 1979 model year, the THM-200 received a lockup torque converter, and some internal components (primarily the low/reverse clutch drum and planetary gears) were later shared with the Turbo-Hydramatic 200-4R. The low/reverse sprag (roller clutch) assembly was also shared with the 1988-04 Chrysler Torqueflite 904 (also 30, 31, 32RH) and its derivatives e.g. the A500 and 42RE. THM200/200Cs were produced until 1987.

THM200-4R[edit]

For the 1981 model year, the 200-4R was introduced. The components which were prone to failure in the THM200 were improved, and in the later 1980s this transmission was used with high-power applications — primarily the Buick Grand National and the 1989 Pontiac Firebird Trans Am Indy 500 Pace cars. The 200-4R was configured with several different torque converters depending on the vehicle application.

Unlike the 700R4, most 200-4Rs have a multicase bellhousing for use with Chevrolet, Buick/Olds/Pontiac (BOP), and Cadillac engines. However, 200-4Rs share mounting locations with the TH-400. Since the external dimensions are similar to the TH-350 (overall length, drive shaft yoke spline count/diameter and general size), 200-4Rs are often swapped in place of TH-350s in older vehicles to provide an overdrive gear. Early models had a 'PRND321' shift indicator, while later models used 'PRN(D)D21,' with the left D identified as the overdrive gear by a square or oval ring.

The THM200-4R can be found in the following vehicles:

• 1981-90 B-bodies
• 1981-84 C-bodies
• 1983-88 G-bodies
• 1985-90 D-bodies
• 1989 Pontiac Firebird Trans Am Indy Pace car (with Buick V6 and a turbocharger)

The THM200-4R was phased out after 1990; its final usage was in the GM B-body vehicles.

THM700R4 / 4L60 / 4L60E / 4L65E / 4L70E[edit]

The four-speed Turbo Hydra-Matic 700R4 was introduced for the 1982 model year for use in Chevrolet/GMC vehicles.

In 1990, the Turbo Hydra-Matic 700R4 was renamed the 4L60. Under the new designation, the '4' stands for the number of forward gears, the 'L' for longitudinal applications (rear-wheel-drive), and the '60' is the strength rating (less than the 4L80). '60' is the relative torque value. For example, 80 is stronger than 60, which is stronger than 40, etc. A 4L80-E can handle more torque than a 4L60-E. The 'E' denotes electronically controlled shifting. The 4L60 however is hydraulically shifted based on governor pressure and throttle valve (TV) cable position. 1992 was the last year of widespread usage of the 700R4 (4L60). The 1993 Camaro, Corvette and Typhoon were equipped with the last production 700R4. Tipsy bartender jolly rancher shot. The last design change of the 700R4 was an added checkball to the valve body. In 1992 electronic controls were added, and it became the 4L60-E. The 4L60E is not easily swapped with the 4L60, as the 4L60E depends on a powertrain control module (PCM) to shift.^[2] The 4L60E went into service in trucks, vans, and SUVs in 1993 and in all RWD passenger cars (Corvette, F and B/D bodies) in 1994. In 2001, an updated version — the 4L65-E, was introduced. Five-pinion planetaries, along with a strength-improved output shaft, were improved to withstand the 300+ lb·ft (400+ N·m) of torque of the 6.0 Vortec engine.The 4L70E transmission is the same as a 4L65E with a speed sensor located in the pump.

700R4 / 4L60 / 4L60E / 4L65E / 4L70E / technical description[edit]

The Turbo Hydra-Matic 700R4 can be identified by an oil pan number six shown at General Motors Transmission Pans.

The tailshaft housing is held onto the main case by four bolts (the bolt spacing is similar to the THM350), and uses a square-cut o-ring seal, and not a gasket. The typical width of this transmission where it bolts to the engine is 20 in (51 cm) overall. From the engine/trans mating surface to the cross member mount bolt is 22.5 in (57 cm), and engine/trans surface to output shaft housing mating surface is 23.375 in (59.37 cm) overall, with the tail shaft housing typically measuring 7.625 in (193.7 mm). External dimensions are similar to a THM350 with a 9-inch tailhousing found in Chevrolet/GMC long wheelbase truck/vans and 1971-76 B-bodies (Bel Air, Impala, Caprice).

Turbo Hydramatic 475

Transmission fluid cooler lines on the 700R4 the bottom fitting on the right side of the transmission is the 'out' line to the cooler and the top fitting is for the return line from the cooler. These fittings are .25 in (6.4 mm) pipe thread, and can include an adapter from the factory for threaded steel lines in a SAE size. 4L60Es manufactured after 1995 use snap-in connections instead of threaded. The original version of the transmission had a 27-spline input shaft (shared with the THM200C and 2004R) which was a common failure point. In 1984, the 700R4 designed for use behind Chevrolet small block V8s received a 30-spline input shaft similar to those found on TH400 transmissions and which also used a different torque converter than its 2.8 V6 and 2.2 L4 engines. Between 1984 and 1987, internal components, from the ring gear to the oil pump housing, were updated, ending with the auxiliary valve body for 700s manufactured after October 1986.

In 1995, the 4L60E received a PWM-controlled lockup converter. The early designs simple on or off lockup function while the later design can variably lock as to not feel the lock up occur. GM added a fifth solenoid to the valve body, called the PWM solenoid. In 1996, GM introduced a redesigned 4L60E transmission case that incorporated a bolt-on bellhousing and a six-bolt tail housing. This two-piece case style was first seen in 1996 and up model S-10 Blazer, S-10 pickup, GMC Jimmy, and GMC Sonoma with the 4.3 L engine. The majority of 1998 and later applications of the 4L60E were two-piece cases (i.e. a removable bellhousing). Both transmissions are the same internally. The non-PWM (1993-1994) style 4L60Es are not interchangeable with PWM-style (1995 and later) 4L60Es. Also in 1996, GM changed the 3-2 solenoid to a different style which makes it not interchangeable with any previous models. For the model year 1996 GM trucks, there were two versions of the 4L60E: one had a bolt-on bellhousing, the other did not. The bolt-on bellhousings used on the 4.3 L V6 and 1996-2002 GEN I+ versions of the small-block Chevrolet V8 used the same bellhousing, while the LSx engines used a longer one to accommodate a redesigned torque converter with a longer pilot nose (GM sells an adapter assembly for using the LSx 4L60Es when used with an early engine).

700R4 / 4L60 / 4L60E / 4L65E /4L70E applications[edit]

^[3][4]

• 1982-1992 Chevrolet Blazer/GMC Jimmy
• 1982-2005 Chevrolet Corvette
• 1983-1996 Chevrolet Impala and Caprice police specials equipped with 350 engines.
• 1983-1985 Oldsmobile 350 Diesel equipped models.
• 1983-2002 Chevrolet Camaro/Pontiac Firebird
• 1985-2005 Chevrolet Astro/GMC Safari
• 1991-1992 GMC Syclone
• 1991-1992 Oldsmobile Custom Cruiser
• 1989-2003 Chevrolet S-10/GMC S-15/Sonoma
• 1989-2005 Chevrolet S-10 Blazer
• 1989-2001 GMC S-15 Jimmy
• 1990-1996 RWD Cadillac Fleetwood/Cadillac Brougham/Cadillac Limo
• 2002-2009 Chevrolet TrailBlazer/GMC Envoy
• 1992-1993 GMC Typhoon
• 1984-2010 Chevrolet Suburban
• 1982-2012 Chevrolet Van
• 1994-1996 Chevrolet Impala
• 1994-1996 Buick Roadmaster
• 1982-2010 Chevrolet C/K
• 1993-2010 Chevrolet Tahoe/GMC Yukon
• 1999-2006 Cadillac Escalade
• 2002-2008 Chevrolet Avalanche
• 2003-2007 Hummer H2
• 2004-2007 Buick Rainier
• 2004-2012 Chevrolet Colorado/GMC Canyon
• 2002-2009 GMC Envoy
• 1988-2006 Holden Commodore
• 2003-2008 Isuzu Ascender
• 2004-2006 Pontiac GTO
• 2005-2009 Saab 9-7X

See also[edit]

References[edit]

1. ^Sessions, R (1987). How to Work with and Modify the Turbo Hydra-matic 400 Transmission, ISBN0-87938-267-8, p. 108
2. ^'700R4 Transmission Resource'. 700R4 Transmission Resource. Retrieved 2016-06-27.
3. ^Chevrolet/GMC/Geo Transmission Lookup Table, http://www.autorepairmanuals.biz/site/573683/page/372807
4. ^Transmission Application Chart, 'Archived copy'. Archived from the original on 2008-01-01. Retrieved 2007-12-21.CS1 maint: archived copy as title (link)

External links[edit]

The TH400 is an aluminum cased three speed automatic transmission that was produced by GM. It was introduced for the 1965 model year and made its debut in Cadillacs, and is respected for its durability and adaptability. The TH400 came in two wheel drive and four wheel drive vehicles, passenger cars and heavy duty trucks, as well as GM vehicles and those made by other manufacturers.

More than almost any transmission ever made, it has found its way into a wide variety of vehicles outside of the GM family. The TH400 has appeared in Jaguars, Hummers, Ferrari’s, and many more.

TH400 Specs

3L80

In the early 90’s GM rebranded all of their transmissions, They created a standardized naming system across their product line, and changed the name of the TH400 to 3L80. The 700R4 became the 4L60 and so on. There is no difference other than the name. 3L80 stands for three gears, longitudinal mount (rear wheel drive), and the 80 signifies that it can handle 8000 lbs. in gross vehicle weight(supposedly).

Note that unlike all the other GM transmissions of the time there was no E at the end of the nomenclature. This is because the TH400 was never designed to communicate with the CPU of the vehicle/The 3L80 was the last non overdrive transmission used by GM in regular production trucks and vans. It was eventually replaced by the 4L80E. It uses the B-O-P bellhousing bolt pattern which makes it compatible with nearly any GM engine. It also does not use a locking torque converter.

Th375 and Th475

There are were a few one of versions of the Turbo 400 as well. These are the TH375, and the TH475. The Th375 was manufactured for cars with low horespower engines in the 1970’s. It was modified to fit the TH350 driveshaft yolk. If you are looking to purchase a TH400 avoid it. It’ll have The TH475 was used in heavy duty trucks in the 1970’s, and can handle a lot of power.

TH400 Identification

If you were to line up every automatic transmission that GM ever produced, you’d be hard pressed to find one that is larger than the turbo 400. It is just huge. If it was lined up with a 200-4R, TH350, or 4L60E it would be easy to identify a TH400. It would be far and away the largest transmission there.

Since it’s not very likely that you are going to run into a lineup of automatic transmissions being the biggest isn’t going to be very helpful.

There are 13 bolts on the pan underneath the transmission. If you count 13 you are almost home free, but the Th350 also has 13. Since these are the two most common GM automatic transmissions of the latter half of the last century it’s very important that you figure out which is which.

The TH400 uses an electronic kick-down mechanism, which means that there will be an electric plug on it. The TH350 uses a mechanical linkage that attaches to the carburetor. Th350 has the vacuum modulator in the back, and the TH400 keeps it on the side.

Using the pan bolt pattern is the easiest way to identify the TH400. Both the TH350 and TH400 have a similar look. They utilize a kick down cable, and they both use the same bellhousing bolt pattern. Identifying the Th400 is really as easy as knowing the differences between it and the TH350.

Cs3 for mac keygen. Also, take a look at the bolt pattern itself. The Th400 has a much more complex pan then the Th350. The Th350 is basically a square with a corner taken out of it. See for yourself. The TH400 on the other hand has 9 different angles on the the pan. It’s one of the more complex pans that GM made.

The Turbo 350 has a much simpler look. Here it is, Notice that it looks like a box with a slice taken out of the corner. That corner would be on the driver’s side of the vehicle.

Identifying Turbo 400 By the Tag

You’ll find the identification tag above the transmission pan on the drivers side. It is machined into the transmission in most cases. So, it’s really not really a tag, which can make it a bit more difficult to identify if the transmission is really greasy. Take some brake parts cleaner with you if you really want to get a good look at it.

Try using this guide to help you lock down what model number you may be looking at.

Common TH400 Problems

• Early Shift– One of the most common issues with the TH400 is that it’ll shift too early. This is almost always cause by the vacuum line that runs to the modulator from the intake manifold. While they came from the factory with hard lines, many people will swap them out for soft lines when doing a swap, since finding a hard line for the particular vehicle can be an issue.
• Late shift– The Th400 will often shift a little later than a person would like, espescially at the track. This is usually caused by its electric kick-down switch.
• General not shifting right– If you’ve checked that the kick down circuit is ok, and the vacuum line is too, than it may be time to look at the vacuum modulator itself. It’s more likely to have fluid in it than it is to have gone out itself.

Turbo Hydramatic 180 Dash

TH400 and Non-GM vechicles

Maybe the best compliment comes from your competition. And at least a dozen auto makers have paid GM to use the TH400 instead of creating a competitor for it. These include Toyota, Ferrari, Rolls-Royce, and Hummer. This is a true testament to its bulletproof reliability and ease of tuning.

The Turbo 400 has been used in Jeeps from the factory. Early model AMC Jeeps used an adapter plate to mate it with the GM bellhousing bolt pattern. Later, a specific TH400 was made just for Jeep. This version tilted the transmission about 4 degrees in order to better accommodate the transfer case. It has not been produced for quite a while and is considered pretty rare. The Turbo 400 is compatible with most Jeeps. However, the CJ5 has to narrow of a wheelbase to accommodate it. The specialty jeep TH400 case is 24 1/2 inches long.

Turbo Hydramatic 200 Metric

When looking at a Jeep that came from the factory with the Turbo 400, it’ll be bolted to either the BW 13-39 or the Dana 20 transfer case. In the 1960’s some Jeeps came with Buick engines, so they used neither an adapter nor the Jeep specific transfer case. Some of the AMC specific adapters on these transmissions have been prone to failure.
